RAILS

We supply a comprehensive range of Rail Steel products covering multiple Indian and international standards to meet rail, metro, mining, and industrial track requirements. Our product line includes CR 80, CR 100, CR 120, IRS 52 (RITES inspected), as well as Used Rails. Additionally, we offer the full IRS series including IRS 52, IRS 60, IRS 70, IRS 80, IRS 100, and IRS 120 along with ISCR grades ranging from ISCR 50 to ISCR 120. High-performance and specialty grades such as 72 UTS, 880, 1080, 1080HH, ZU 160, UIC 60, UIC 860 0 2008/900A and GR 880 Class A & B are also available to support heavy-duty and long-life track applications.

Our inventory also includes a wide range of China Grade Rails that comply with globally recognized specifications. Light rails are offered under YB222-63, manufactured in Q235B and 55Q steel grades, along with GB11264-89 standards. We also provide Light Steel Rails as per YB222-63 for industrial and mining applications. For crane and heavy-load operations, we supply Crane Rails under YB/T 5055-93 in popular sections such as QU70, QU80, QU100, and QU120, suitable for gantry cranes, port cranes, and material handling systems.

We supply Japanese standard rails widely used in industrial tracks, metros, cranes, and specialized rail applications. The range includes JIS 22 kg, 30 kg, 37 kg, and 50 kg rail sections, manufactured to high metallurgical standards to ensure superior durability, dimensional precision, and excellent weldability. These rails are preferred for projects requiring consistent quality, strong load-bearing capacity, and long service life.

Our European-grade rail offerings include 60E1 (UIC 60), 54E1 (UIC 54), and 46E2 profiles, engineered to meet EN and UIC specifications for global railway infrastructure. These rails are designed for high-speed railways, heavy-haul freight corridors, metro systems, and industrial sidings. With excellent tensile strength, fatigue resistance, and dimensional accuracy, European standard rails are ideal for demanding track performance and long-term reliability.

For more information about Rail Products or to discuss using it in your application,
please contact Divyesh Shah +91 98201 27077, Keval Shah +91 99305 27077 or give us a call at 022 3151 8314

We deal in all Size is from 5mm ~ 120 mm as per client's requirements.

Rail Steel Grades

• CR Grades: CR 80 / CR 100 / CR 120
• IRS Grades: IRS 52 / IRS 60 / IRS 70 / IRS 80 / IRS 100 / IRS 120
• ISCR Grades: ISCR 50 / ISCR 60 / ISCR 70 / ISCR 80 / ISCR 100 / ISCR 120
• High Strength Grades: 72 UTS / 880 / 1080 / 1080HH / ZU 160
• UIC Grades: UIC 60 / UIC 860 0 2008 / 900 A
• GR Grades: GR 880 Class A / GR 880 Class B
• China Light Rail: Q235B / 55Q (YB222-63)
• China Light Steel Rail: GB11264-89
• China Crane Rail: QU70 / QU80 / QU100 / QU120 (YB/T 5055-93)
• Japan Grade (JIS): 22 kg / 30 kg / 37 kg / 50 kg
• European Grade: 60E1 (UIC 60) / 54E1 (UIC 54) / 46E2
• TMT Fe 415
• TMT Fe 415D
• TMT Fe 500
• TMT Fe 500D

Specification

Form : Rails (Light Rails, Heavy Rails, Crane Rails)
Delivery Conditions : As Rolled, Heat Treated (Where Applicable)
Size Range : Based on Rail Profile (CR / ISCR / IRS / UIC / QU / JIS Grades)
Length : 6 m, 9 m, 12 m (Custom lengths available on request)
Surface Condition : Natural Black Rolled, Cleaned, or Machined (for Crane Rails)
Inspection : RITES Inspection Available for IRS Grades
Applications : Seaports , Warehouses , Construction Companies , Industrial Sheds, over head Gantry , Underground Mine Trackage ,Power Projects , Sugar Industries.

Equivalent Grades Chemical Properties Mechanical Properties

Designation	---
	Cross Sectional Area		Positions of Centre of Gravity		Moment of Inertia		Section Modulus			Tensile Strength		Elongation GL of 5.65 fflso where So is the area of cross section of the specimen in the GL	Hardness of Rail Head (HB)
	cm²	kg/m	cz (cm)	ez (cm)	Iz (cm⁴)	Iy (cm⁴)	Zz = Iz/cz (cm³)	Zez = Iz/ez (cm³)	Zy = Iy/by (cm³)	MPa	(kgf/mm²)	Percent	HB

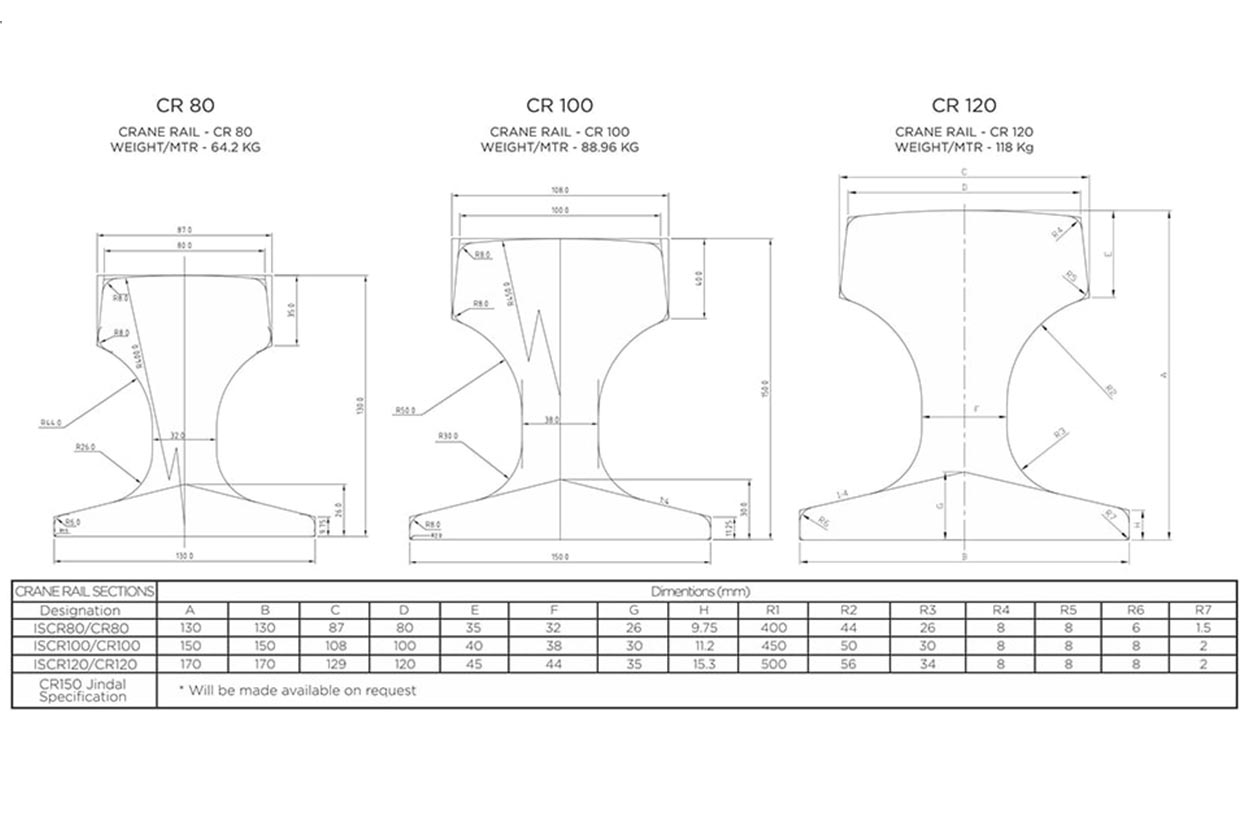

ISCR80 / CR80	81.8	64.2	6.47	6.53	1524	468.6	233	233	72.1	710	72	14	200
ISCR100 / CR100	113	89	7.63	7.37	2806	920	368	381	123	710
ISCR120 / CR120	151	118	8.69	8.31	4794	1672	552	577	197	710

Grade / Product	C (Max %)	Mn (Max %)	Si (Max %)	S (Max %)	P (Max %)	Other Alloying Elements	Notes / Standards
Rails (CR80, CR100, CR120, IRS 52)	0.6–0.8	0.8–1.25	0.15–0.40	0.04	0.04	Cr (0.3), V (0.07), Cu (0.25) in high grades	High-carbon, alloyed steel for hardness, wear resistance.
Used Rails	Similar to IRS 52 specs.	–	–	–	–	–	Worn rails; chemical ranges remain similar.

Grade / Product	Standard (IS)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Key Notes / Applications
Rails (CR80, CR100, CR120, IRS52)	IRS T-12 / IRS 52	550–880	880–1080	10–14	Rails for heavy load & high-speed trains
Used Rails	IRS Standards	Similar to above	Similar to above	Similar	Industrial sidings, gantries

Equivalent Grades Chemical Properties Mechanical Properties

Grade / Product	Standards / Equivalents	IS (India)	DIN (Germany)	EN (Europe)	JIS (Japan)	Typical Uses / Applications
TMT Fe 415		IS 1786 Fe415	Approx. DIN 488 BSt500	BS 4449 B500A	SD295A	RCC structures, residential buildings, low-rise construction
TMT Fe 415D		IS 1786 Fe415D	DIN 488 BSt500	BS 4449 B500B	SD345	Seismic-resistant RCC structures, flexible reinforcement
TMT Fe 500		IS 1786 Fe500	DIN 488 BSt500	BS 4449 B500C	SD390	High-rise buildings, bridges, infrastructure requiring strength
TMT Fe 500D		IS 1786 Fe500D	DIN 488 BSt500	BS 4449 B500C	SD490	Critical infrastructure, earthquake-prone zones, offshore structures

Grade / Product	C (Max %)	Mn (Max %)	Si (Max %)	S (Max %)	P (Max %)	Other Alloying Elements	Notes / Standards
TMT Fe 415 (IS 1786)	0.3	0.6	0.15	0.06	0.06	–	Low carbon; ensures ductility, weldability.
TMT Fe 415D	0.25	0.6	0.15	0.04	0.04	–	More ductile, lower carbon and impurities.
TMT Fe 500	0.3	0.6	0.15	0.055	0.055	–	High strength, moderate ductility.
TMT Fe 500D	0.25	0.6	0.15	0.04	0.04	–	Extra ductile; for seismic/critical structures.

Grade / Product	Standard (IS)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Key Notes / Applications
TMT Fe 415	IS 1786	415	485	14.5 (min)	RCC buildings, residential projects
TMT Fe 415D	IS 1786	415	485	18 (min)	Seismic-resistant structures
TMT Fe 500	IS 1786	500	545	12 (min)	High-rise buildings, bridges
TMT Fe 500D	IS 1786	500	545	16 (min)	Offshore, high-stress applications

Applications Industries

Seaports

Warehouses

Over Head Gantry

Construction Companies

Underground Mine Trackage

Sugar Industry
